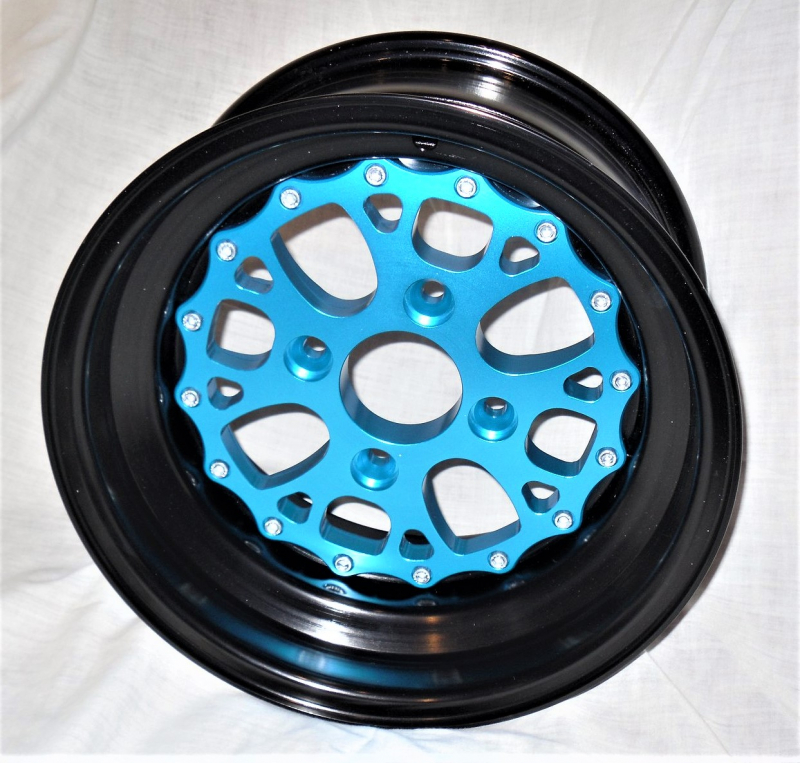

12" 3 Piece Modular Wheels Overview
Wheels from £205 each + VAT
Please note: All of our three piece wheels have the valve hole drilled at 7mm to accept bolt in Richbrook alumiunium valves. If you would like to use standard rubber valves please advise on ordering.
After numerous enquiries from historic racing competitors looking for a lighter wheel, we have now produced our own tooling to allow us to manufacture our 3 piece wheels in 12".
As you can see, this is a scaled up version of our 10" V1 style, V2 style is also available. We are also looking into replicating the super-lightweight design of our 13" wheel.
Constructed in the same way as our ever popular 10" and 13" wheels these are available in two widths, due to limitations in tyre availability.
6" wide, +10mm offset, weight 3.4kg.
6.5" wide, +4mm offset, weight 3.5kg.
Please note that small alterations in offsets can be accomodated by offsetting the mounting face if required. Thicker billets will use more material and this will be charged on a per/mm rate.
Billet centres CNC machined to the finest tolerances and anodised in the following bright colours:
- Silver
- Gold - from light straw to full gold
- Black
- Blue
- Red
- Green
- Violet
- Gunmetal
- Titanium
- Grey
- Orange
- Lime green
- Olive brown [looks like dark bronze]
- Pink
- Turquoise
Black or silver anodised rim sections avaliable from £11 each or £22 per wheel.
Rim combinations are as follows:
Inner Rims - 3.5"- 4.5" in 1/2" increments
Outer Rims - 1.5"- 2.5" in 1/2" increments
