17" Rim Drawings

These rim drawings have dimensions to allow clearances to be checked.

Rim sections available are:

Inner Rims   7" or 8"

Outer Rims   1", 2" or 3"

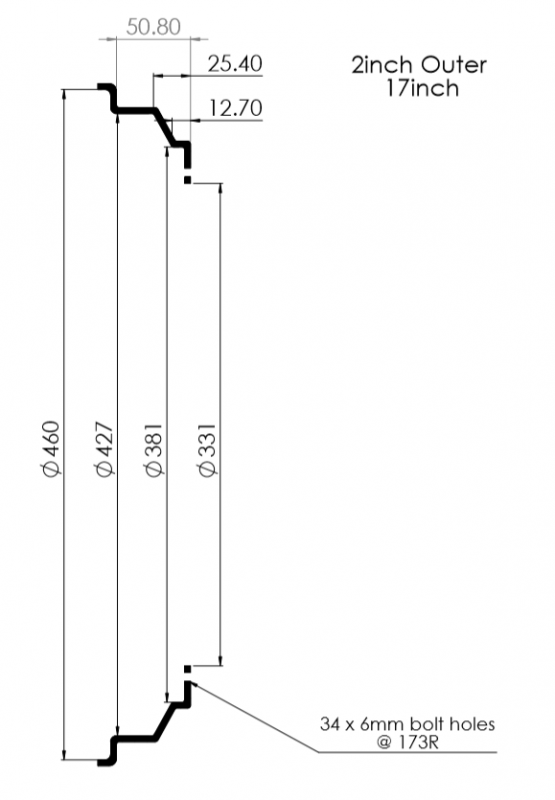

17" Rim Drawings Image 1
17" Rim Drawings Image 2
17" Rim Drawings Image 3
17" Rim Drawings Image 4
17" Rim Drawings Image 5
